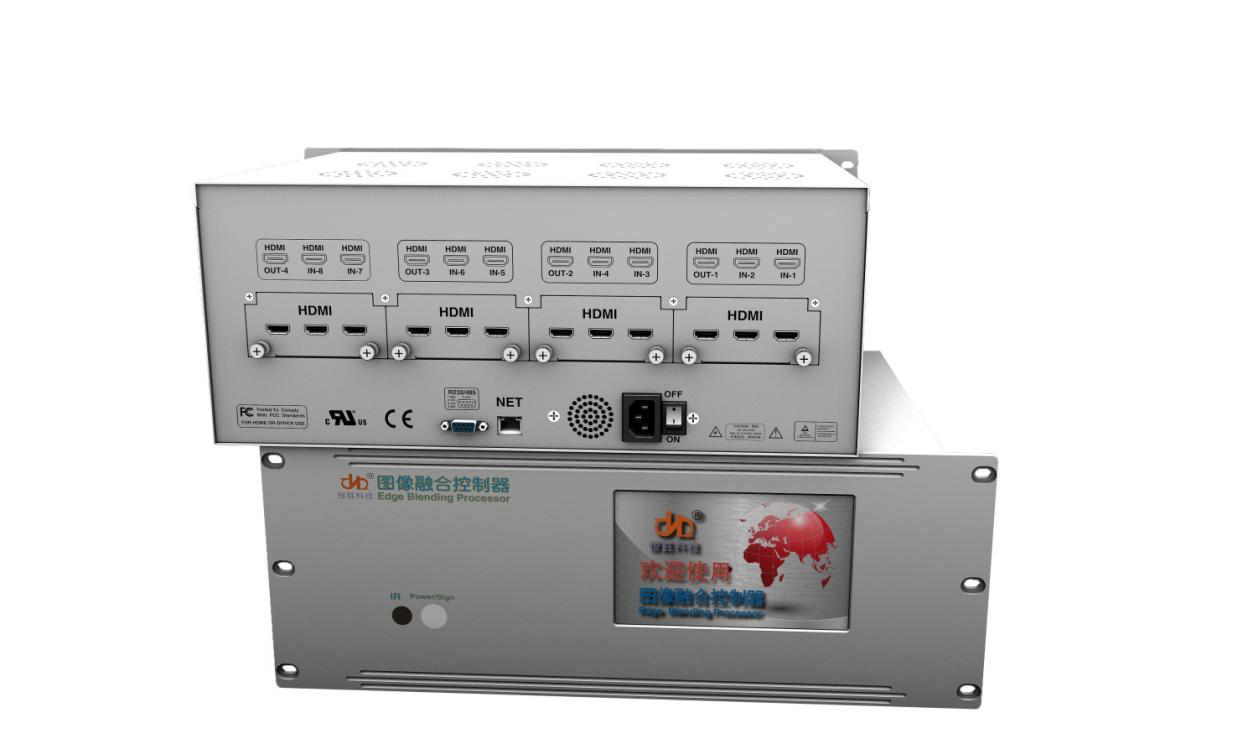

Edge blending processor HS-DPRIII

  Image Processor     |      2013-06-26

Product Details

 1. Pure hardware architecture, no operating system, the boot is very fast and it takes only 3-5 seconds to fully start the image.

★2. The graphical computer control interface makes human-computer interaction more friendly, intuitive and simple, and the interface is flexible and can be changed according to user preferences.

★3. Pull-out board structure, you can replace the board without disassembling the boot, which is convenient for maintenance.

★4. Every board support 2 channels of HDMI input and 1 channels of HDMI output.

★5. Per chassis maximum support 8 channels of HDMI input and 4 channels of HDMI output.

★6.Support multiple chassis cascading to meet the needs of more input and output channels.

★7. Each board is processed independently, non-jamming, no matter how many pictures, it can keep smooth playback.

★8. It can quickly identify the type resolution of the input image signal, and support multiple resolution input.

★9. The input supports Full HD above 1080P, and the output supports above 1080P.

★10. Using Nvidia and AMD graphics cards with a huge horizontal desktop function, and multiple outputs form a large resolution. These signals can be seamlessly spliced through the edge blending processor to achieve very high resolution from the surface.

★11. Apply advanced digital image processing algorithms to intercept and display the amplified signal in real time, support multi-screen display, and zoom in, zoom out and drag the window at will.

★12. Built-in HDMI matrix, the signal source does not need additional matrix, pure digital processing, the image is more realistic.







Specification:

Processor

Many nuclear high speed graphics chips work together

Equivalent bus width

256GBPS

Equivalent advanced cache

4M

Equivalent processing speed

66.56GMIPS

Memory

Single input 128 M

Input interface

HDMI

SYNC mode

Pixel clock

PIXCLK

25MHz-330MHZ

Input channel resolution

640×480、800×600、1024×768、1366×768、1280×1024、1920×1080P、3840×1080 and so on

Color depth

24bit/pixel

Zoom&display

Magnification:0.3—10

Identification Method

Auto

Output interface

HDMI

Output format

Pixel clock

output channel resolution

640×480、800×600、1024×768、1366×768、1280×1024、1920×1080 and so on

Output refresh rate

60-120Hz

Color depth

24bit/pixel

Control port

RS232C

Input voltage

AC100V-240V,auto

Line Frequency

50-60Hz

Power consumption

<300W

Power source

300w

Temperature

-10℃~50℃

Humidity

5~90% without condensation
