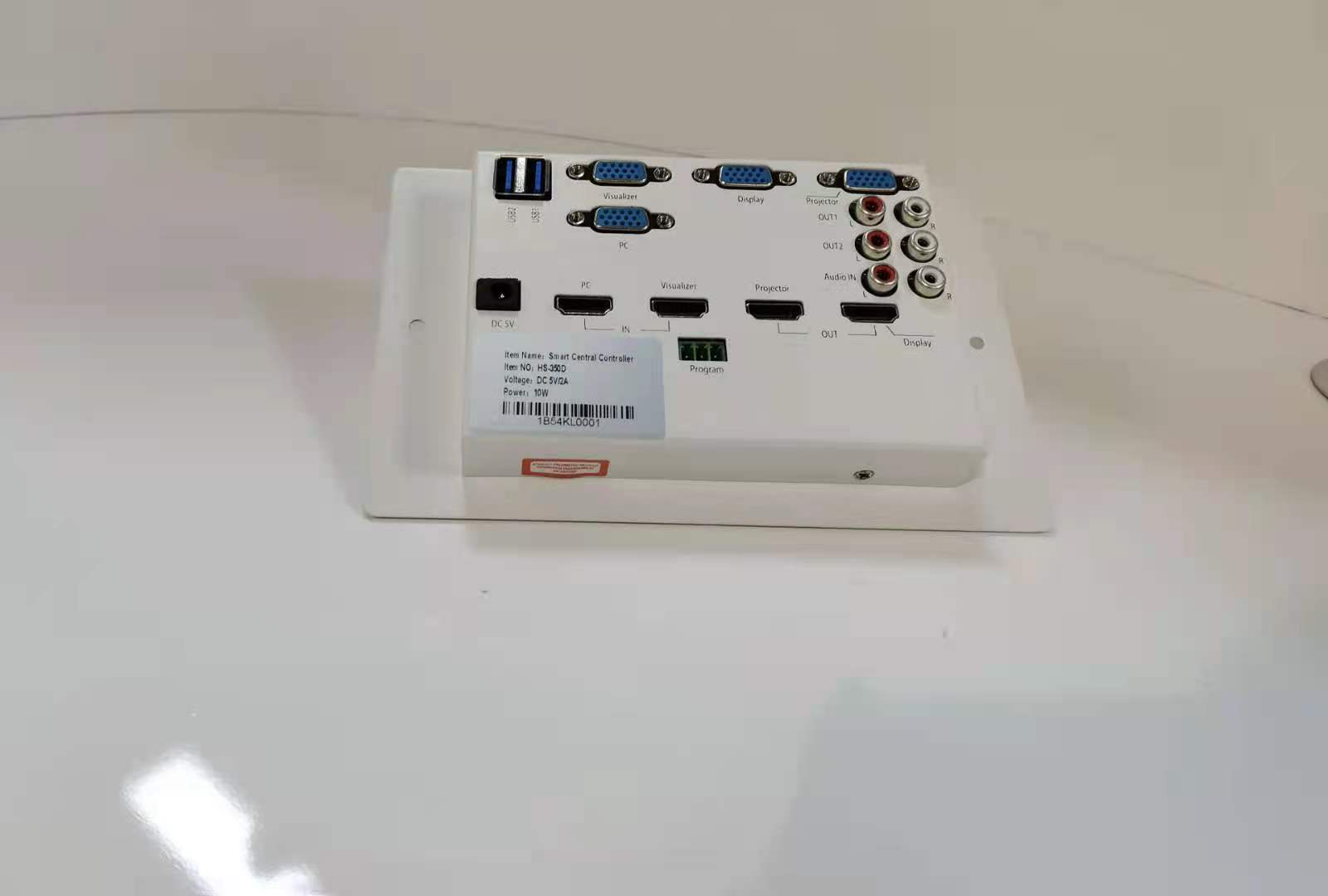

4K Central Controller HS-350D

  Central Controller     |      2021-06-23

Product details

1.You can add, subtract, mute the output sound,with sound switching and volume control function,

2. HDMI:3 in 2 out,VGA:3 in 2 out,Audio: 2 in 2 out stereo,USB3.0 2 in and out and compatible

with 2.0,RS232:1way.

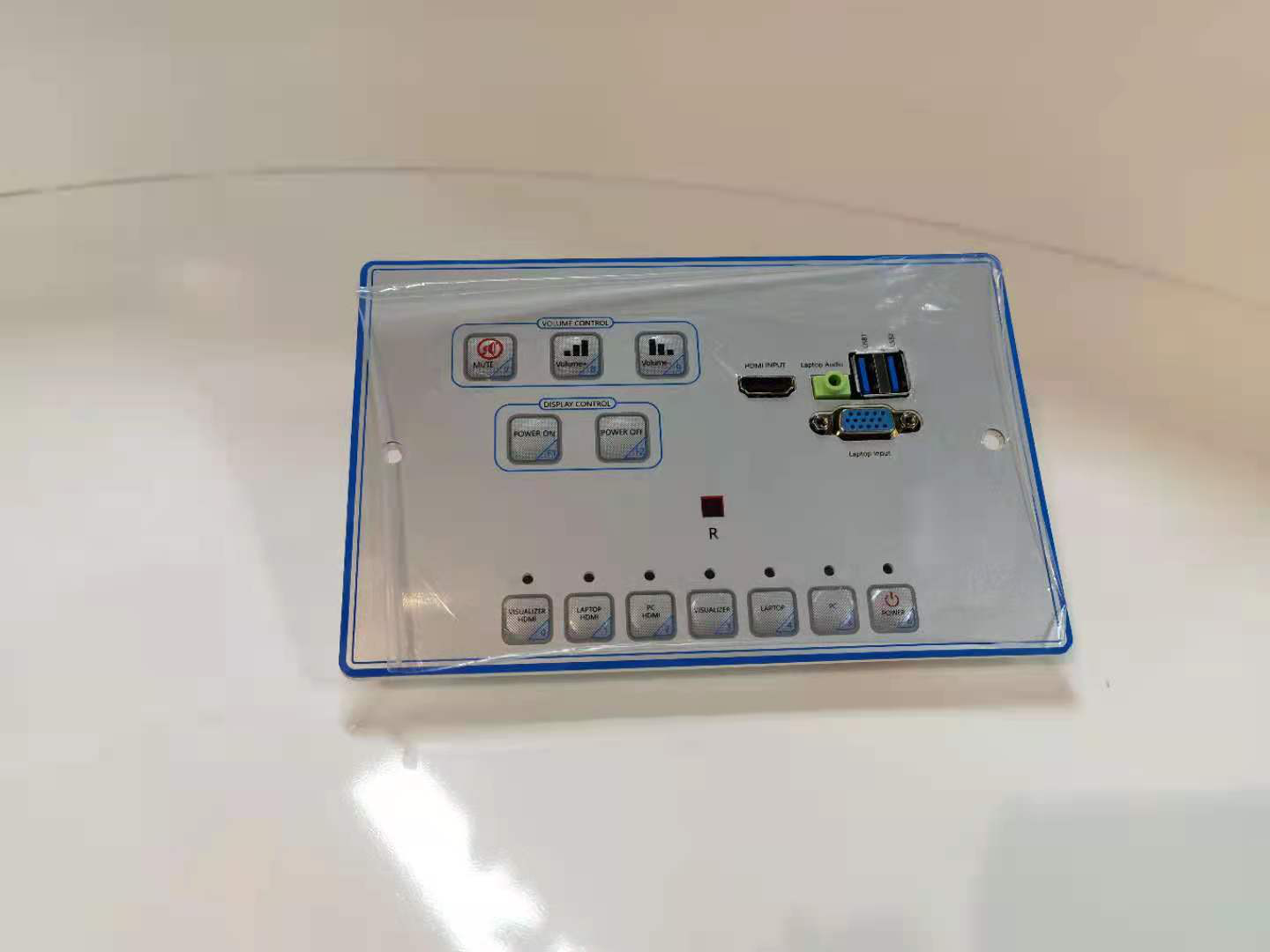

3.The front panel adopts the whole dust-proof and waterproof control film button.

4.The central control built-in VGA video high bandwidth switch distribution chip.

5.The central control built-in HDMI video high bandwidth switch distribution chip.

6. Ultra thin ,4k central controller




Product Model

HS-350D





Signal Parts

VGA signal(input × output)

3×2

HDMI(input × output)

3×2

Stereo audio(input × output)

2×2

Power Supply

Power supply

DC5V

Maximum power consumption

<10W





Machine part

Panel size(L×W×D)mm

approximately:187×119×2.5

Body size(L×W×D)mm

approximately:136×96×27

Recommended opening hole size(L×W)mm

140×100

Accessory

Power adapter





Panel interface

USB interface

2 way USB3.0

VGA interface

1way

HDMI interface

1way

Portable audio input

1way

Portable VGA input

1way

Specification
