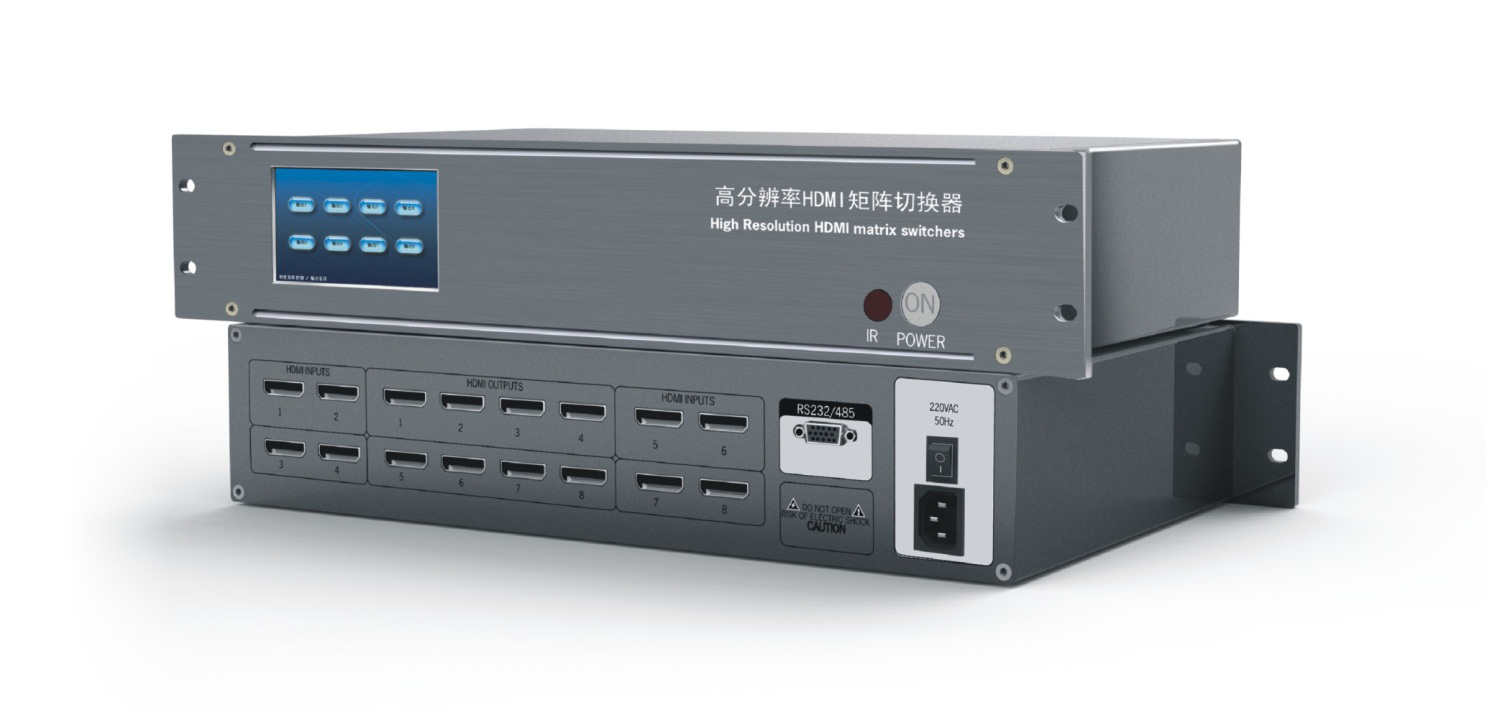

HDMI Matrix Switcher HS-HDMI0808/04 Ⅱ

Signal Matrix Switcher | 2013-06-26

Product Description

HS-HDMI0808/04/02 is an HDMI matrix with 8 inputs and 8/4 outputs. This matrix supports HDMI 1.3a, HDCP 1.3, and DVI 1.0 protocols. All HDTV resolutions that support 12-bit color depth include 1080p/60, and PC resolutions up to 1920*1200. Supports automatic equalization for long-line inputs up to 35 meters, compensation for long-distance HDMI cables, and reduces the number of additional input signal processing equipment required. This matrix can excellently transmit HDMI video and multi-channel digital audio signals to the display device through the HDMI cable.

Features

·Support 8 HDMI inputs, 8/4 HDMI outputs and cross-switching of embedded multi-channel digital audio signals:

·Compatible with all HDTV resolutions including 1080p/60 and PC resolutions up to 1920x1200;

·Long-line input automatic equalization-to ensure that each input can be independently and automatically compensated for signal loss caused by long-distance transmission or the use of low-quality cables;

·Support HDMI 1.3a, HDCP 1.3, and DVI1.0 protocols. Support high color depth, and up to 2.25 Gbps rate;

·HDCP compatibility-to ensure that the media with content protection can be displayed normally in conjunction with other HDCP compatible devices;

·With power-down memory function, and power-off site protection；

·The front panel adopts Hengsheng exclusive patent technology-- 4.3 inch full color programmable LCD touch panel , it can make key operation；

·With 1way RS-232 communication interface；

·With 1way RS-485 communication interface；

·With 1way IR remote interface；

·Built-in international universal power supply, power supply range supports AC 100V--240V；

·Standard 19-inch rack mount: 2U high-grade aluminum chassis.

Typical application

It is mainly used in monitoring engineering, radio and television engineering, multimedia conference halls, large-screen display engineering, television teaching, command and control centers and other places.

Specifications

Parameters		Specification
Video	Protocol	Support HDCP1.3 protocol, support HDMI1.3 protocol, compatible with DVI l.0 protocol
	Gain	OdB
	Pixel Bandwidth	165MHz,All numbers
	Interface bandwidth	2.25Gbps,All numbers
	Max support resolution	Normal-PC: 1600×1200@60_24bit, HDPC:1920×1200P@ 60_24bit,HDTV: 1920×1080P@60_36bit
	Bit clock jitter	<0.15 Tbit
	Rise time	<0.3Tbit(20%--80%)
	Fall time	<0.3Tbit(20%--80%)
	Max transmission delay	5nS(±1nS)
	Switch speed	200ns（the longest time）
	Signal type	HDMI-A all-digital T.M.D.S. signal in the HDMI 1.3 specification
Video Input	Interface	HDMI-A female interface 8 channels
	Signal strength	T.M.D.S. +/-0.4Vpp
	Min/Max electrical level	T.M.D.S. 2.9V/3.3V
	Impedance	75Ω
	Input EDID	EDID On-site rewritable
	Max DC offset error	15mV
	Recommended max input distance	Less than 20 meters, at 1920×1200@60 (recommended to use certified HDMI dedicated cable village, such as Molex TM cable)
Video Output	Interface	HDMI-A female interface 8 channels/4 channels
	Min/Max electrical level	T.M.D.S. 2.9V/3.3V
	Impedance	50Ω
	Recommended max output distance	Less than 10 meters, at 1920×1200@60 (recommended to use certified HDMI dedicated cable village, such as Molex TM cable)
RS-232 Control Interface	Serial control interface	RS-232,DB9 type interface
	Baud rate and protocol	9600,data bit:8,stop bit:1,No parity
	Structure of serial control interface	2= TX,3= RX, 5=GND
RS-485 Control Interface	Serial control interface	RS-485,DB9 type interface
	Baud rate and protocol	9600,data bit:8,stop bit:1,No parity
	Structure of serial control interface	1= DATA+,4= DATA-
LCD touch screen	Working method	programmable, four-wire resistive touch screen
	Size	4.3 inch
	Color	65536 colors
Infrared	Channel	1way infrared（IR）receiver
Infrared	Working method	38KHZ carrier communication mode, remote control is optional
Others	Power supply	100VAC - 240VAC,50/60Hz,International adaptive power supply
	Temperature	-20℃ - +70℃
	Humidity	10% - 90%
	Weight	＜4kg
	MTBF	50,000 hours
